Produk Proteksi & Perekaman Daya

Teknologi proteksi terdepan dari ERL Phase Power Technologies untuk meminimalkan risiko padam dan kerusakan fatal pada gardu induk Anda.

ERL Phase Authorized Distributor

Recorders

TESLA 4000 Recorder (Model 4000)

TESLA 4000 is an easy-to-use and cost effective, state-of-the-art, multi-time frame (simultaneous) digital fault recorder. Its integrated Phasor Measurement Unit (PMU) functionality streams synchrophasor data for wide area monitoring. Enabled with IEC 61850 protocol, TESLA has advanced communication capabilities that, together with its powerful recording features, provide the most versatile and complete monitoring of power system health.

View Details

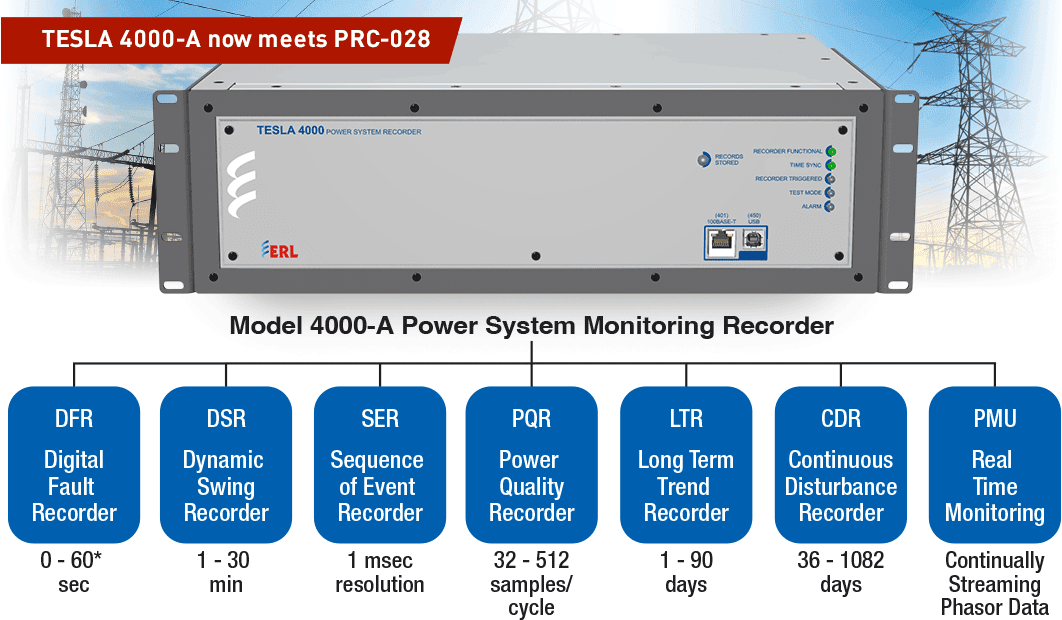

TESLA 4000 Recorder (Model 4000-A)

TESLA 4000 is an easy-to-use and cost effective, state-of-the-art, multi-time frame (simultaneous) digital fault recorder. Its integrated Phasor Measurement Unit (PMU) functionality streams synchrophasor data for wide area monitoring. Enabled with IEC 61850 protocol, the Model 4000-A has advanced communication capabilities that, together with its powerful recording features, provide the most versatile and complete monitoring of power system health.

View Details

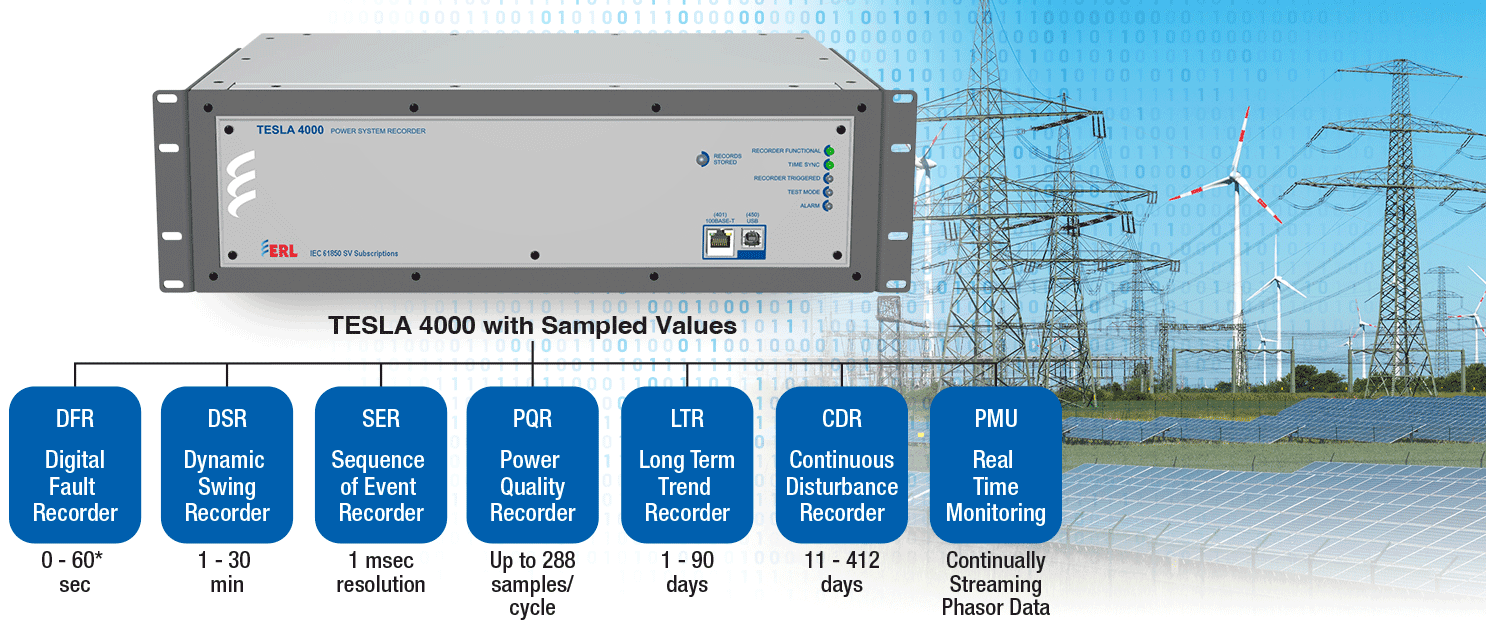

TESLA 4000 Recorder (Model 4000-SV)

TESLA 4000 SV supports both IEC 61850-9-2 LE as well as IEC 61869-9 to subscribe to Sampled Value streams from Merging Unit. It also publishes and subscribes to GOOSE messages from protective relays and switchgear. The Model 4000-SV also supports direct streaming of MMS reports to remote clients, eliminating the need for RTUs. The Model 4000-SV supports the top-down or bottom-up engineering process defined in the IEC 61850-6 standard which enables standardization and interoperability of fault and disturbance recording solutions as the industry moves towards fully digital substations.

View Details

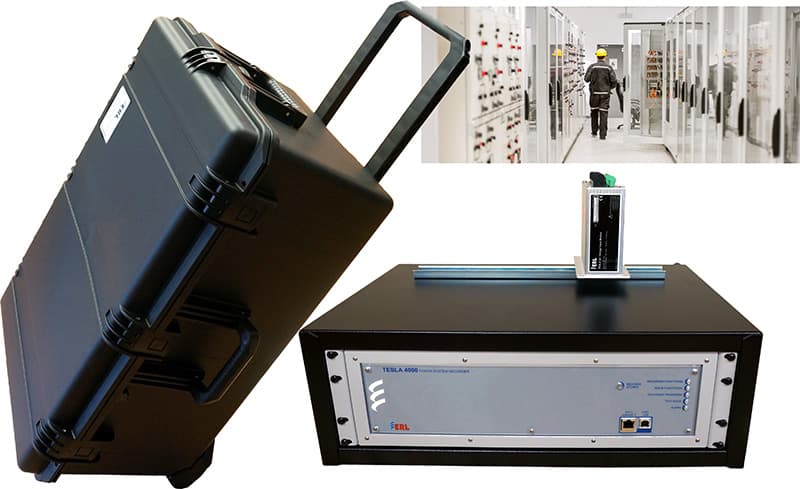

TESLA Portable Power System Recorder

The TESLA Portable 4000 is a multi-time frame power system monitoring recorder within a portable metal enclosure. Featuring a robust 19" 3U rack-mount enclosure, TESLA Portable is suitable for temporary installation or short-term monitoring applications. Available in 2 models, customers may choose between “36 analog/64 digital inputs/8 digital outputs” or “18 analog/32 digital inputs/4 digital outputs”. TESLA Portable can accommodate current modules, voltage modules, dc isolation modules or split core CTs, which can mount up to 1200 meters from the recorder chassis. Lightweight and robust, TESLA Portable wheels easily, includes shock absorbant padding and meets airline carry on regulations.

View Details

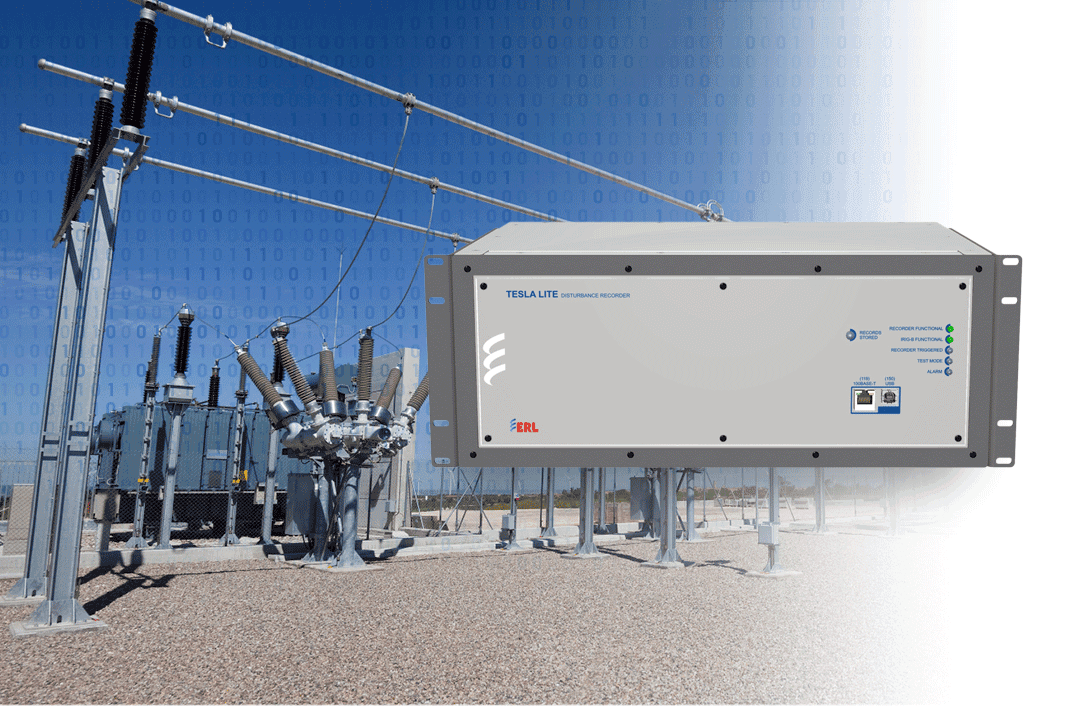

TESLA LITE Fault Recorder

Economical yet complete power system recording for custom applications in smaller substations.

View Details

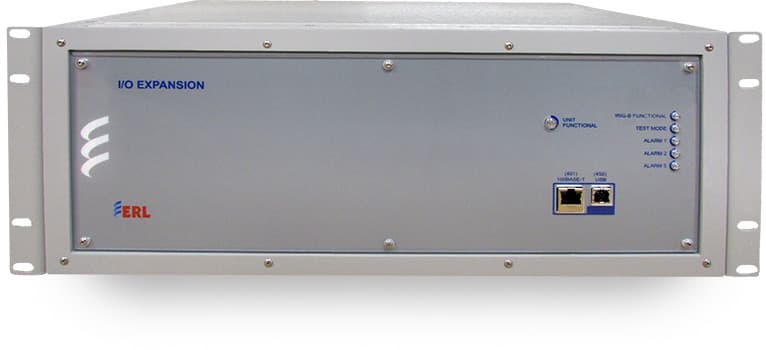

I/O Expansion

The I/O Expansion is a stand-alone digital input/output Expansion that supports 128 physical digital inputs (DIs), 15 output contacts, 128 subscription virtual channels for record triggering and 15 subscription virtual channels for output contact controls. The I/O Expansion uses IEC 61850 GOOSE (Generic Object Oriented Substation Event) station bus (8-1) enabled protocol to publish and subscribe the binary input/output messages with ERL Devices and other IEDs supporting IEC 61850 GOOSE subscriptions.

View Details

Multi Function Protection Relays

B-PRO Bus Protection Relays

The B-PRO relays provide low impedance differential protection for any bus bar configuration with CT saturation security, integrated breaker failure, overcurrent protection and SCADA control in a fully integrated solution. The B-PRO also provides control, automation, metering, monitoring, and high quality fault oscillography and sequence of events logging.

View Details

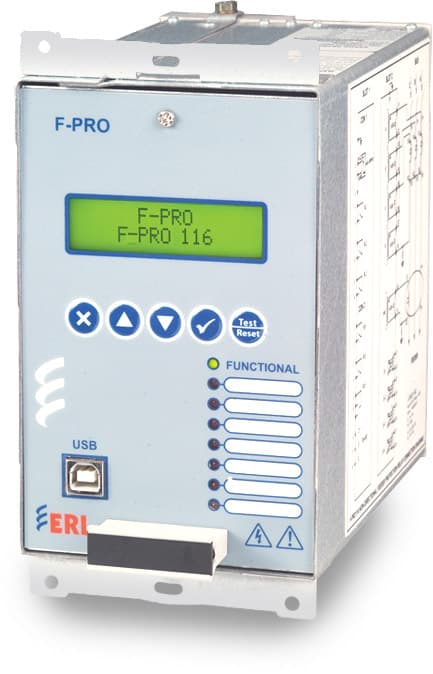

F-PRO Feeder Protection Relays

The F-PRO family of numerical multifunction relays provide complete feeder protection with a wide range of protection functions suitable for transmission, distribution and industrial applications. This broad selection of relay functionality and hardware options allow customers to choose the best suited and most cost-effective solution for each application. High reliability comes from robust and field-proven design, as well as self-monitoring hardware and a software watchdog.

View Details

L-PRO Line Protection Relays

The L-PRO is a digital, microprocessor-based line distance protection system that provides comprehensive distance based line protection for medium to extra-high-voltage transmission lines. Apply the L-PRO for high-speed distance and directional protection and complete control in multi-breaker applications typically found in ring or breaker-and-a-half substation arrangements.

View Details

M-PRO Motor Protection Relay

M-PRO is a numerical multifunction motor protection relay having exhaustive protection functions and advanced communication capabilities. It provides complete protection, with current and voltage inputs for induction motor applications. This product includes metering, communications, fault logs, disturbance recordings and sequence of events with 1 ms timestamp resolution for analysis.

View Details

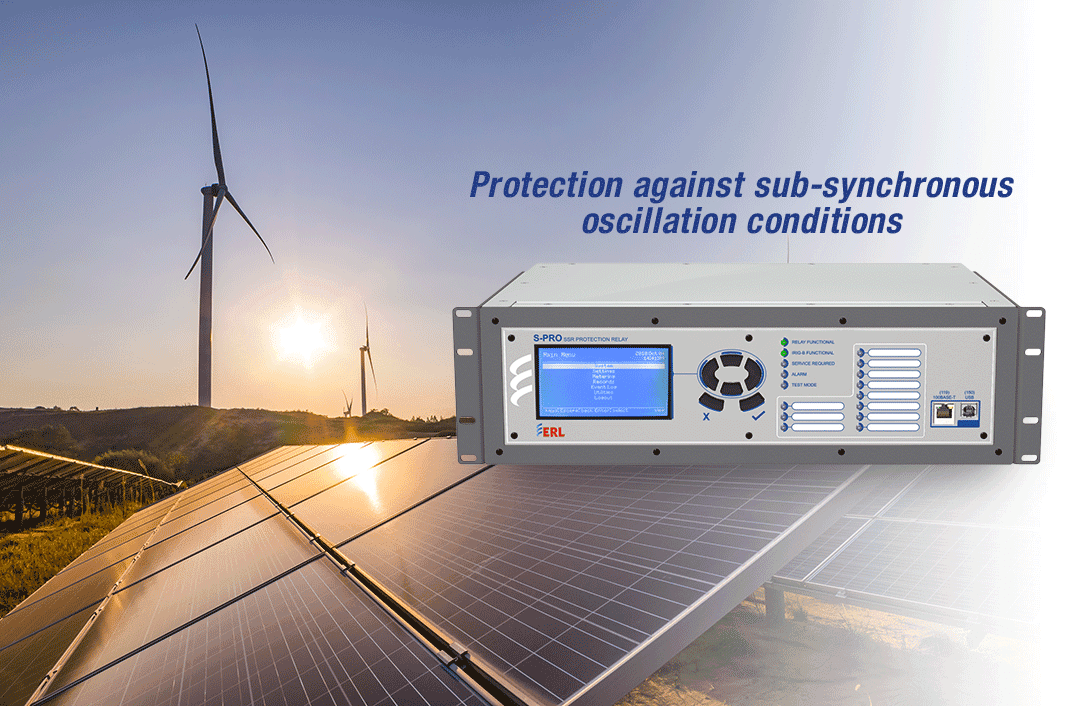

S-PRO Sub-Harmonic Protection Relay

The S-PRO sub-harmonic protection relay protects various power system equipment including generators, wind turbines, PV system, series compensated transmission lines, FACTS devices and power transformers from uncontrollable sub-synchronous oscillation conditions known as: sub-synchronous torsional interaction (SSTI) sub-synchronous control interaction (SSCI) sub-harmonic resonance (SSR) sub-harmonic ferroresonance

View Details

T-PRO Transformer Protection Relays

The IEC 61850 station bus embedded T-PRO relay provides complete 3-phase multi-winding transformer fault and overload protection, DFR-quality fault oscillography, sequence of event logging, trend recording, in a fully integrated protective relay solution, with advanced communications in a flexible cost-effective package.

View Details

Relay Test Blocks

ERMLG Test Block and Test Plug

The ERMLG Test Block and Test Plug provides facilities for monitoring and secondary injection testing of any power system protection scheme, removing the need to disturb protective system wiring for testing. It is housed within an Epsilon enclosure and has 14 pairs of spring loaded contacts which are linked to a terminal block positioned at the rear of the enclosure. Each pair of contacts are normally closed, completing the circuit through the test block when the associated protection equipment is in use.

View Details

Software Tools

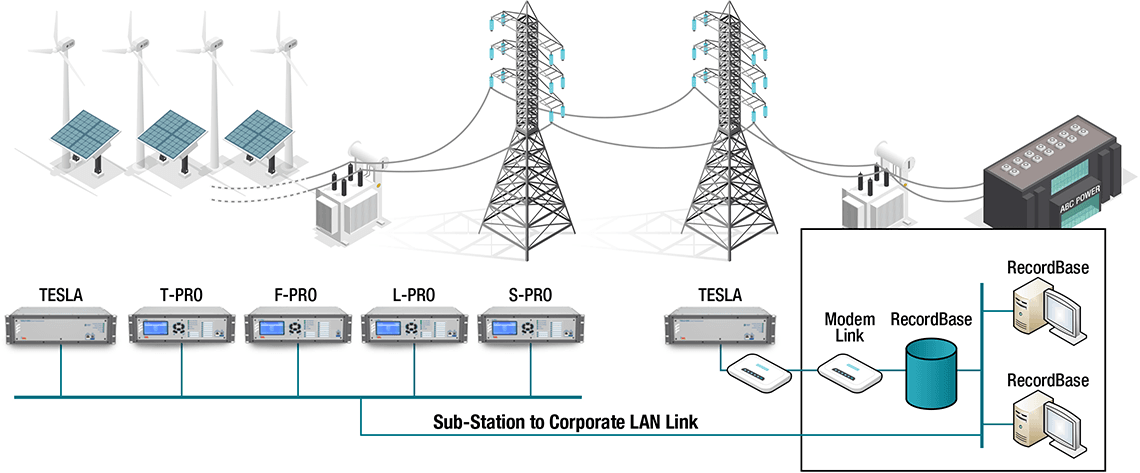

RecordBase Central Station

RecordBase Central Station software provides automated collection, storage and network-wide access to fault/disturbance data produced by ERLPhase recorders and relays. It ensures the data is automatically brought to a secure location, readily available to engineers and technicians for display and analysis.

View Details

All products are sourced directly from ERL Phase Power Technologies with full manufacturer warranty.
